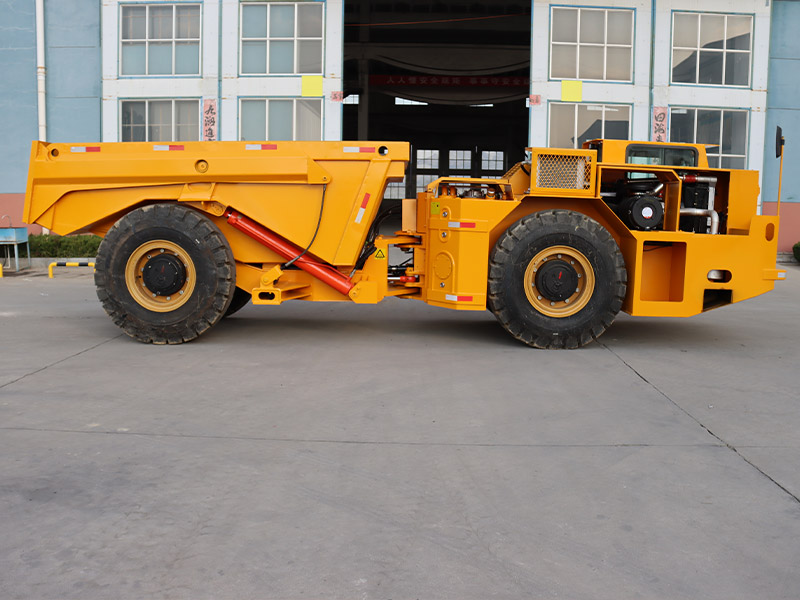

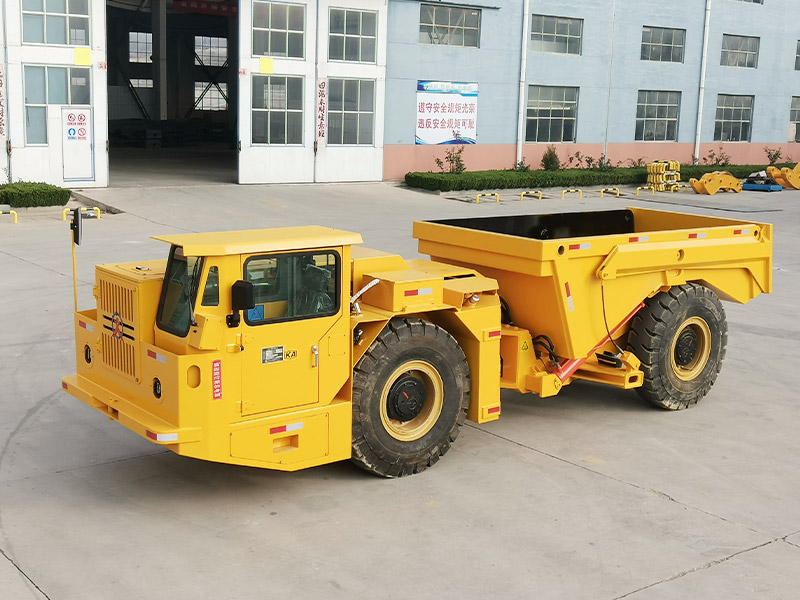

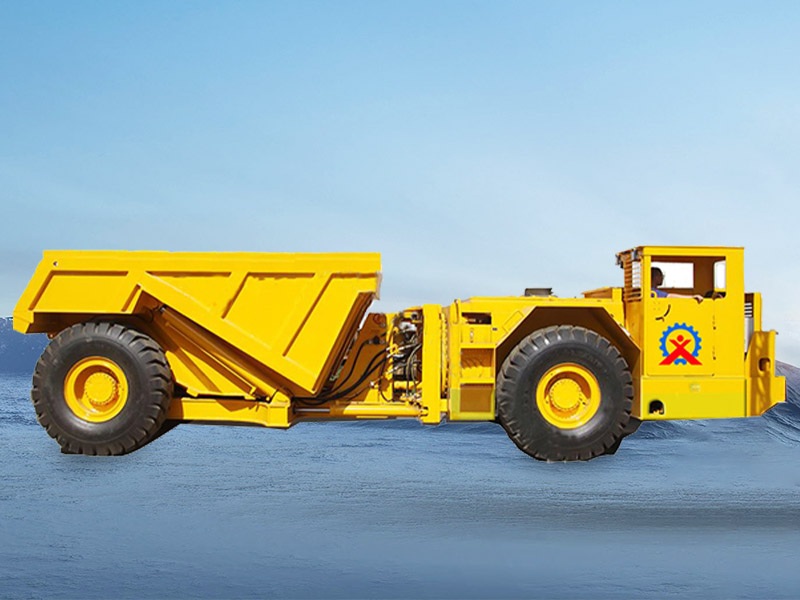

Mine Dump Truck UK-12

The UK-12 mine dump truck is specially designed and manufactured for mining operations. Dump truckIt is mainly used in conjunction with LHD in excavation and mining under thefor transporting ore and various materials. Its use can significantly Increase the efficiency of work. The dump truck is the main vehicle for underground

mining.

The UK-12 mine dump truck is equipped with a diesel engine, all-wheel drive, tilting backwardsbody, hydraulically controlled central articulation frame. The dump truck is differentmanoeuvrability, large steering angle, small turning radius, suitable for excavation

with a cross-section of 3.5 × 3.5 m and more.

Benefits & Features

  This vehicle is equipped with a low-speed Cummins engine, corresponding to the Chinese national III standard, with large torque, liquid-cooled and low fuel consumption, low environmental pollution, reliable in operation and easy to maintain.

  The torque converter is connected to a HANGZHOU ADVANCE gearbox. Drive axles with spring brake hydraulically released, cut-resistant pneumatic mining tires, all-wheel drive, Efficient braking (fully enclosed wet brakes), high reliability and long tire life.

Major hydraulic system components (such as MICO bypass valve, brake valves from well-known

  The chassis of the dump truck is centrally articulated, the front and rear drive axles are mounted on swivel half-frames Provides improved traction and shock absorption for the entire machine, while the enclosed cab provides safety and comfort

for the driver.

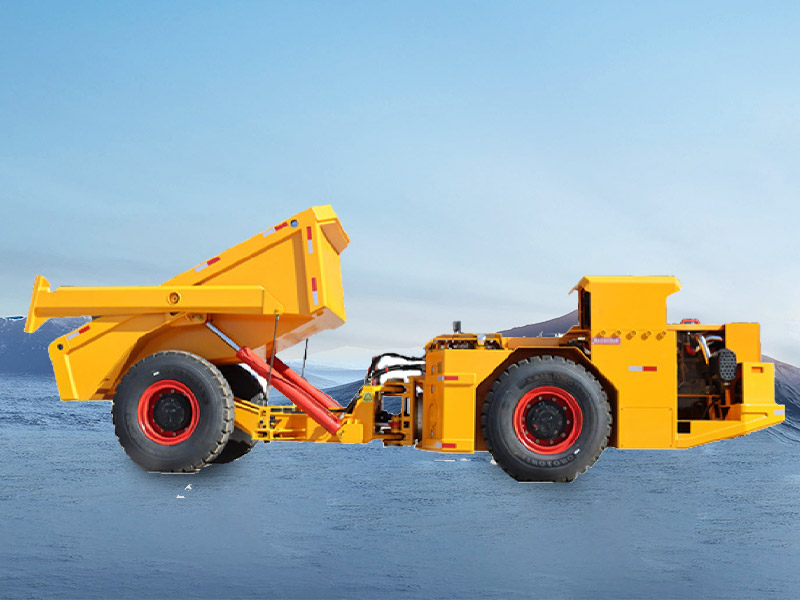

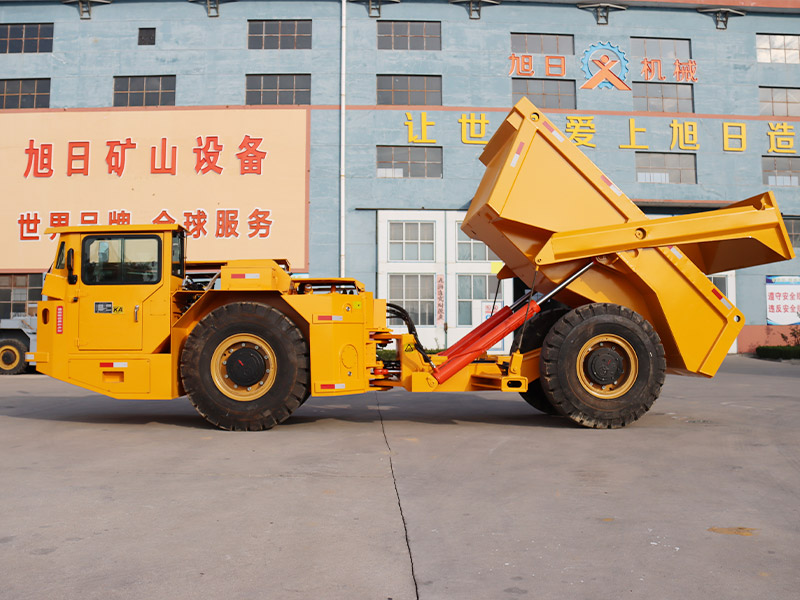

The body is tilted backwards, the large lifting angle is convenient for unloading ore and bulk materials.
 The hydraulic hoses and wires of the car have fire-resistant insulation or wax coating to prevent

Fires caused by damage to hydraulic hoses or fuel lines and leakage of oil or fuel.

 Enclosed cab, climate control, safe and comfortable working conditions for the driver.
